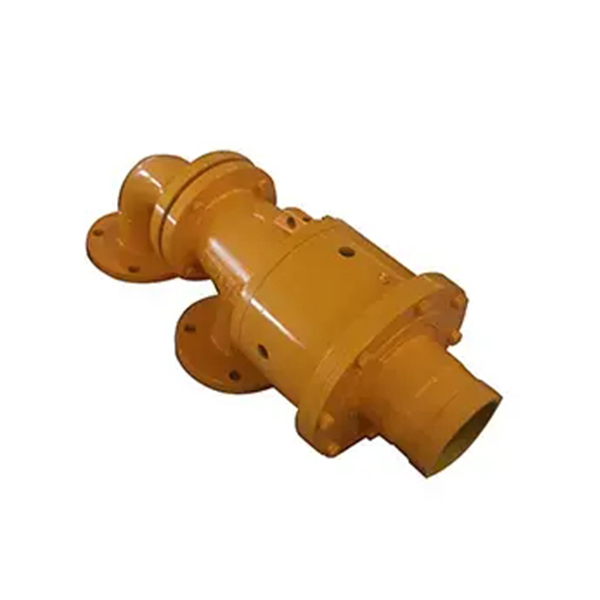

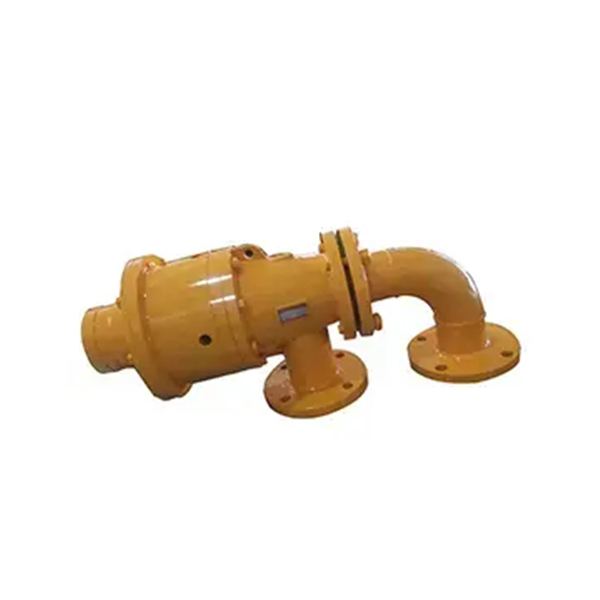

Hot Oil Rotary Unions, BW Series

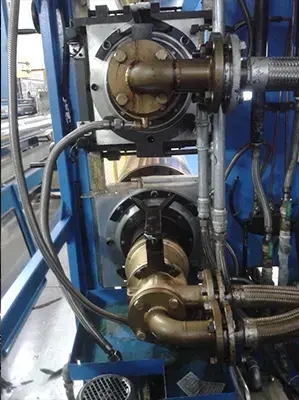

The BW series rotary unions are developed with a balanced seal and self-support design, high-precision metal bearing and an anti-shock structure, leading to high reliability and superior quality. It finds a wide application in the soft calender for paper making.When it comes to the BWL rotary joint, it is specially designed for transferring thermal oils at a medium speed and low and medium temperature. The seal surface makes use of quenched steel and graphite to realize balanced sealing. Additionally, a group of small springs are used to offer stable fore to graphite. The BWL thermal oil joint has a protection device which introduces leaked hot oil into heating device, thus avoiding bearing block caused by the oxidation of thermal oil and worker empyrosis.

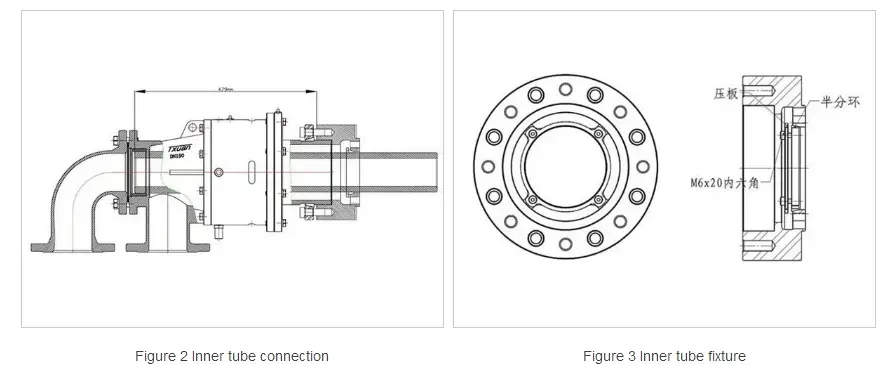

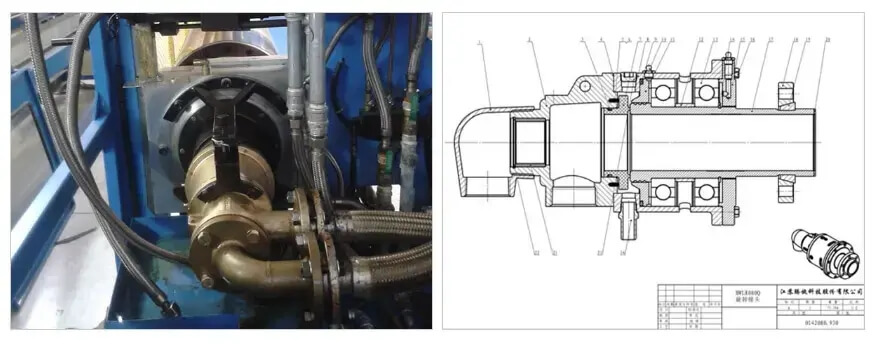

Rotary Union Structure
Rear cover, gasket, cover, PTFE shaft sleeve, lifting eye, stationary seal ring, flange, housing, quick-change flange, nipple, inner tube flange

Technical Parameters of Hot Oil Rotary Unions
Max. speed: 750RPM
Max. temperature: 195℃
Max. pressure: 1.1MPa
Media: Hot oil

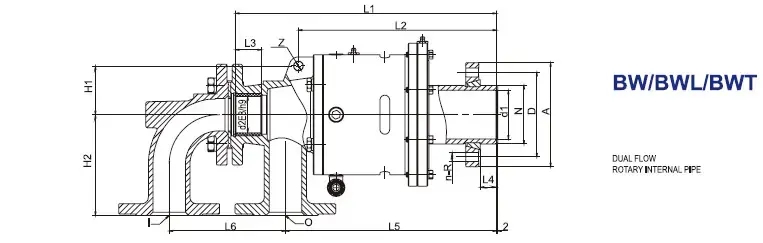

SIZE TABLE

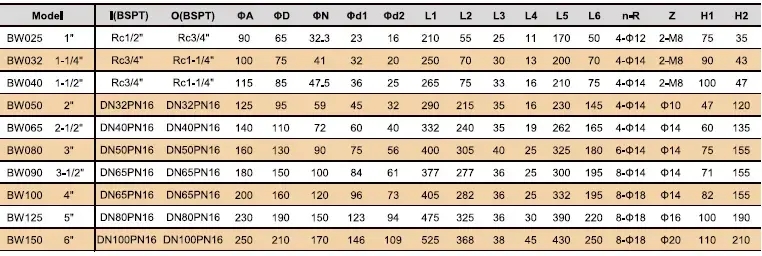

MODEL TABLE
