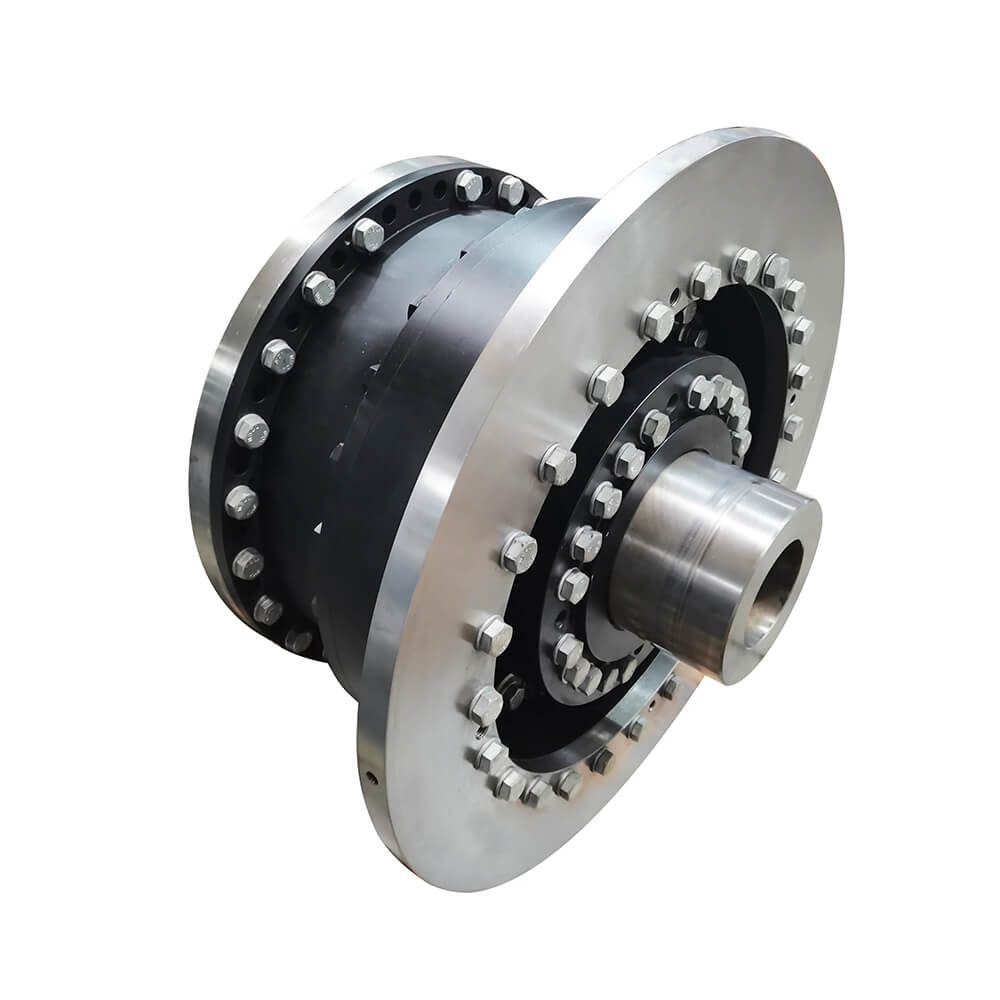

Coupling of Semi-direct Drive Unit

The coupling of semi-direct drive unit is usually elastic pin coupling. It is mainly composed of brake disk, non-metallic module, locking assemblies, torque limiter and other components.



Features:

  • Compact structure, semi direct drive coupling can be make to shorter.
  • Strong torsional ability, suitable for low speed and high torque application.
  • Suitable for shaft connection with small torque, the built-in torque limiter can redue the short impact of high torque through slipping.
  • Electrical insulation > 5MΩ
  • Elastic action can compensates for radial, angular and axial deviations.



Technical Parameters:



Type Rated torque /kNm Rated Slip torque /kNm Angular Yaw /° Radial displacement /mm Axial displacement /mm Max. speed /rpm Electrical insulation Anti-corrosion level Dimensions /mm Brake disc /mm
LQ230XZMY 144 230 ±0.2 ±0.1 ±0.6 254 ≮DC1000V /20MΩ C4(H)
